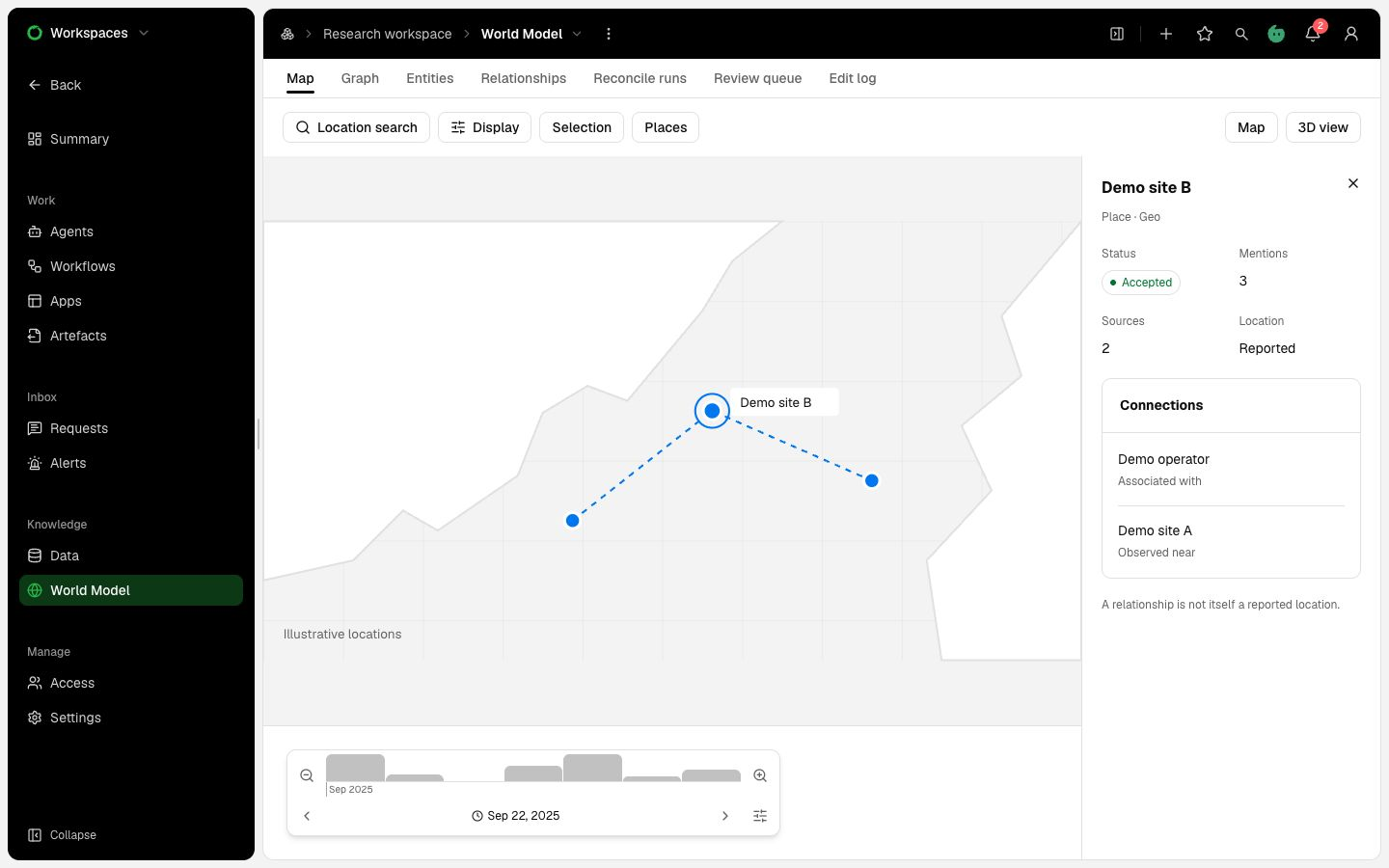

Illustrative World Model with a selected entity and time control. Map geometry, relationships and positions are schematic demo data.
Choose and inspect a view
Open World Model → Map or Graph. Use Select to inspect an entity. Use Pan to move the view; press Escape to return to Select. In the graph, use Path for the shortest route between two selected entities. Use Neighbours for one entity and its direct links. Open evidence before interpreting a highlighted connection. The side pane’s Display tab controls layers, counts and layout. Selection holds the inspected items. The map’s Places tab contains areas, planning shapes and unplaced entities. Check scene limits and loaded coverage. The graph defaults to 2,500 entities and permits a limit from 1,000 to 10,000. The map reads up to 20,000 positions. A partial scene cannot establish absence.Distinguish location from association
The map uses readable position evidence first. Other supported placement includes a manual pin, a reported location relationship or an approved gazetteer match. Show associated entities starts off. When enabled, it can draw an unpositioned entity beside a related anchor. Inspect the association label and supporting relationships. That display establishes neither a location nor area membership. Leave unresolved places in Unplaced. Do not supply invented coordinates to complete a scene.Select the time question
Show the time bar and choose Event time or Collected time. Use an absolute range when the task needs reproducible bounds. The time bar displays UTC. Click a bar to select its unit, or drag across bars. Use zoom and step controls to inspect adjacent periods. Browser Back returns to earlier window selections. Event-time overlap includes uncertain dates at their stated precision. Check mentions with undecided time separately. On the map and graph, the reported-by rule can hide sources published after the event window. It does not apply to tables, area members, time-bar counts or density. Do not interpret those counts as identical filtered populations. Collected time and event time both show the current lists. Neither reconstructs earlier curation state.Inspect an area
Select a saved area in Places, or use permitted drawing controls. Check its revision, geometry and selected event time. Area queries need a qualifying event window of at most 31 days. Read inside, partial and unknown separately. Inspect unknown reasons such as conflicting mentions, uncertain boundaries or missing usable event time. Association placement supplies no area evidence.
Map packs supply retained basemap, terrain and gazetteer assets inside the deployment. Missing geography does not trigger an external fallback. Use the graph or tables when required map data is unavailable.
Finish with a note naming the view, time axis, interval, filters, coverage and evidence behind your conclusion. See Follow a finding to its evidence.
